DYNAMIC INTEGRITY TESTING

Ultra Sonic Pile integrity Test (USPIT)


Advanced ultrasonic integrity evaluation solutions for reliable deep foundation quality assessment.

ASTM D6760

Overview

  • Ultrasonic Pile Integrity Testing, commonly performed using Crosshole Sonic Logging (CSL), is an advanced non-destructive testing method used to evaluate the integrity and concrete quality of deep foundation systems.
  • YJACK Technology conducts ultrasonic integrity testing for drilled shafts and deep foundations using embedded access tubes and ultrasonic transceiver systems to identify potential defects, irregularities, and concrete inconsistencies throughout the pile structure.

Project Applications

Bridge
Infrastructure

Railway
Systems

High-Rise
Developments

Marine &
Offshore Structures

Large Diameter
Drilled Shafts

Critical Infrastructure Foundations

Engineering Capabilities

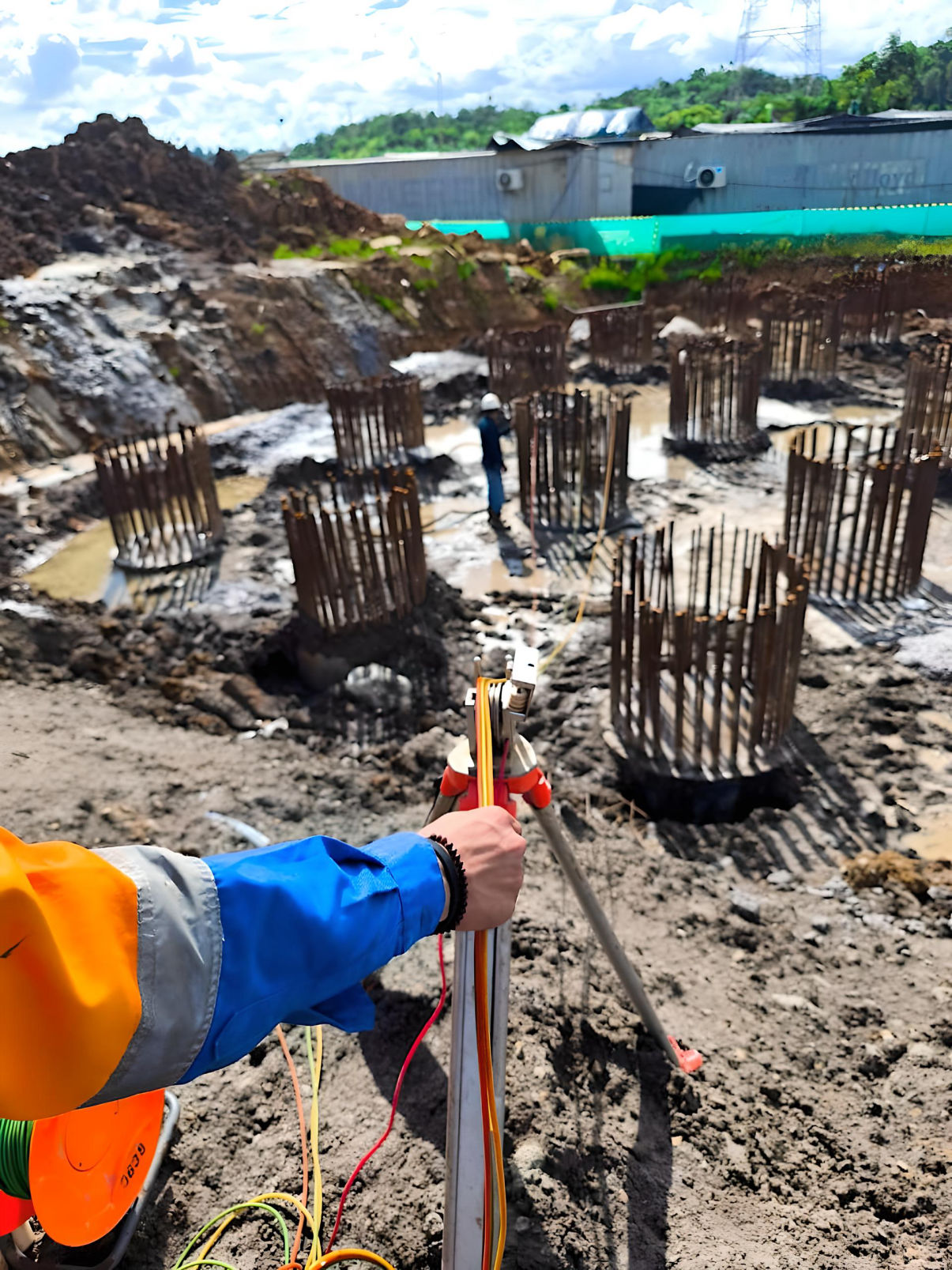

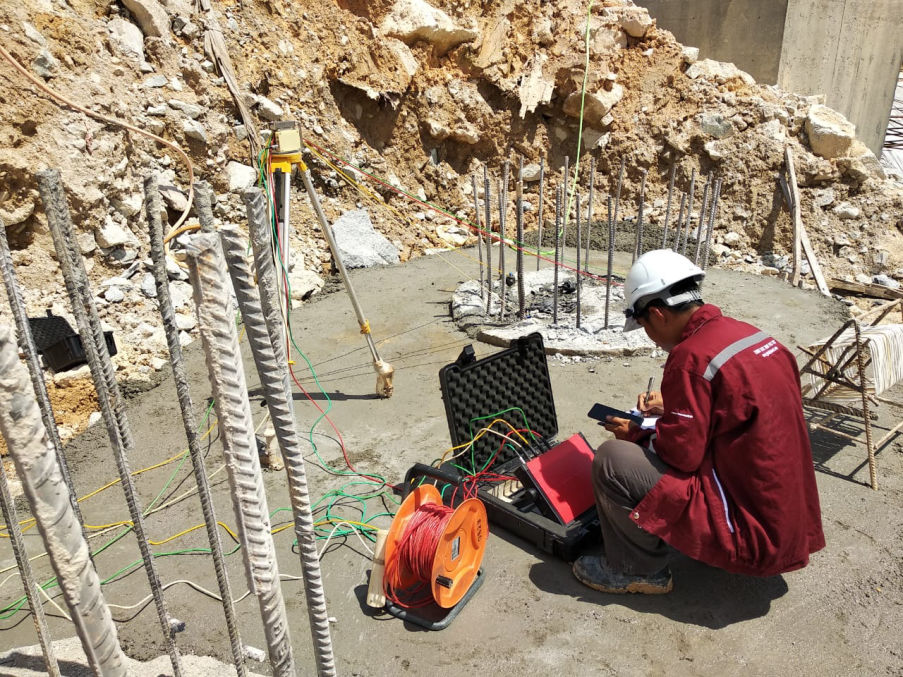

Crosshole Sonic Logging (CSL) testing is conducted using ultrasonic transceivers installed within pre-positioned access tubes attached to the reinforcement cage during construction.

YJACK engineers analyze ultrasonic pulse transmission behavior, signal arrival times, and waveform characteristics to evaluate concrete quality and identify potential integrity concerns throughout the foundation element.

EXPLORE RELATED PROJECTS

MRGEO BRAND

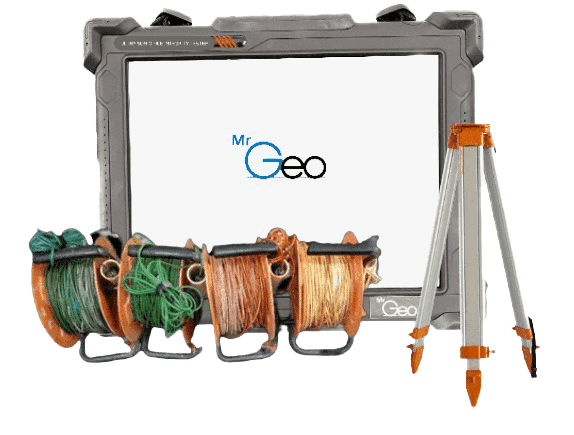

Ultra Sonic Pile Integrity Tester (USPIT)

The Ultra Sonic Pile Integrity Tester (USPIT) is a state-of-the-art testing equipment to perform ultra sonic pile integrity test (US) on deep foundation piles. With the advancement of the electronic components, now the system normally performed by multiple sensors with 1 pull to obtain 6 profiles.

  • Ultrasonic Signal Analysis
  • Full Shaft Assessment
  • Multi-Sensor Testing Capability
  • Accurate Defect Identification
Learn More Contacts Us
