STATIC LOAD TESTING

Pile Instrumentation for Pile Load Test (PIPLT)


Advanced instrumentation and monitoring solutions for accurate deep foundation performance evaluation.

ASTM D1143 ASTM D3689 ASTM D3966

Overview

  • Conventional pile load testing primarily measures applied load and displacement at the pile head. Through advanced instrumentation systems, YJACK Technology enhances load testing capabilities by providing detailed analysis of pile behavior, load transfer characteristics, and foundation performance.
  • Instrumentation systems including vibrating wire strain gauges, extensometers, load cells, and inclinometers support accurate monitoring and engineering evaluation across complex infrastructure and deep foundation projects.

Project Applications

Bridge
Infrastructure

Railway
Systems

High-Rise
Developments

Marine &
Offshore Structures

Deep Foundation Monitoring

Infrastructure
Expansion Projects

Engineering Capabilities

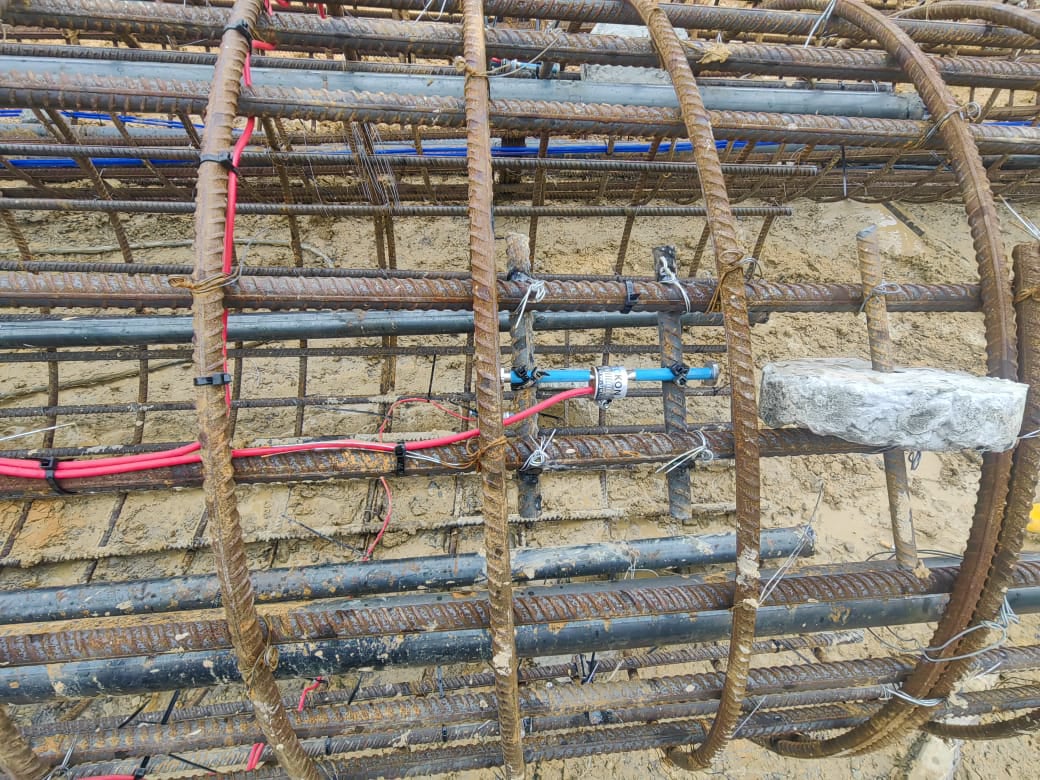

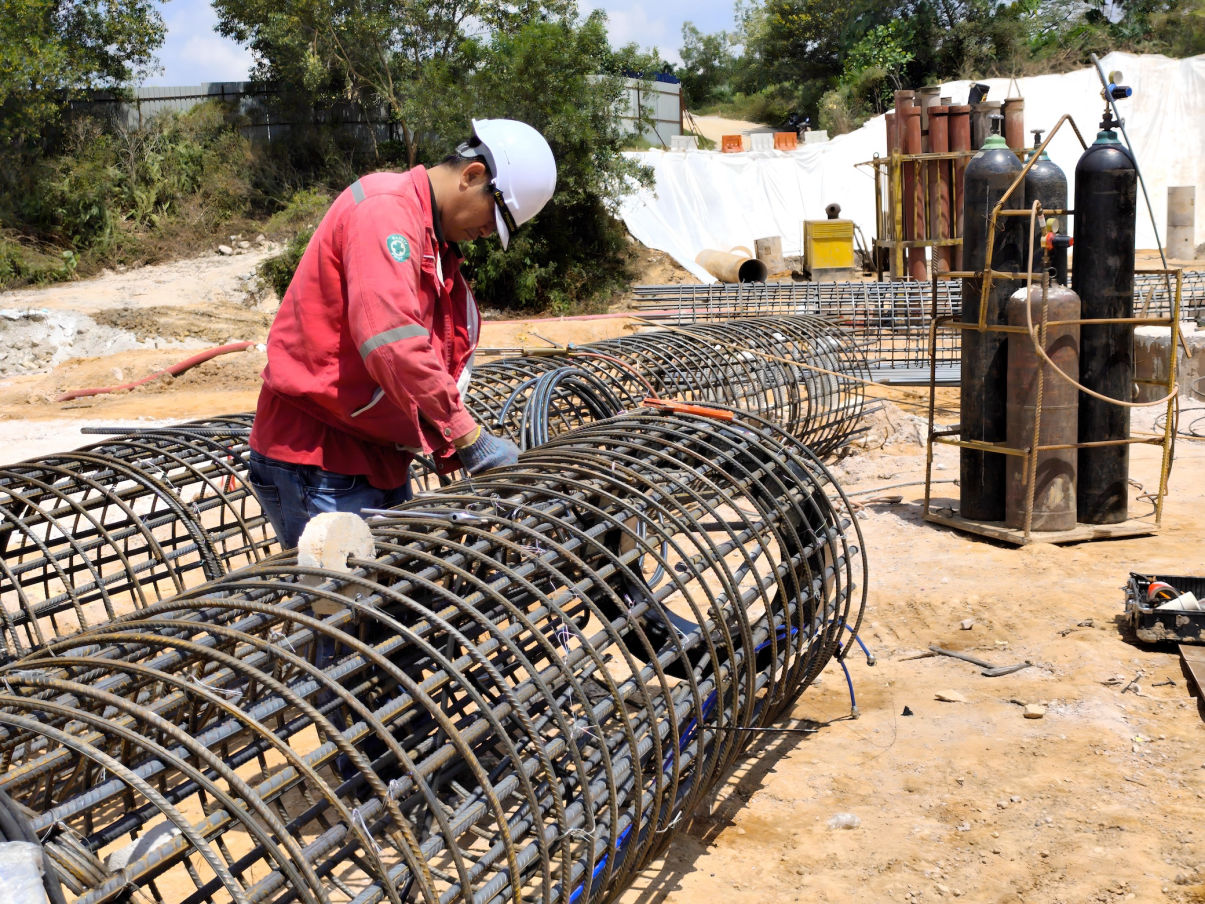

YJACK Technology installs vibrating wire strain gauges at predetermined levels within reinforcement cages to support detailed strain monitoring and engineering interpretation during vertical load testing.

Extensometers, load cells, and inclinometer systems can also be integrated to evaluate shaft movement, applied load, lateral ground movement, and depth of fixity under various loading conditions.

EXPLORE RELATED PROJECTS

MRGEO BRAND

Static Compressive Pile Load Tester - 12 Channel

Static Compressive Pile Load Tester (SCPLT) is a state-of-the-art testing equipment to perform static load test on deep foundation piles. This automation system is to record applied load (Q) vs pile displacement (D) in static load test for static compressive (SC), static tensile (ST) and static lateral tests (SL).

  • Precision Monitoring
  • Reliable Data Collection
  • Operational Efficiency
  • Advanced Field Application
Learn More Contacts Us
