DYNAMIC IMAGING TEST

Hole Profiling Pile Imaging Test,MODEN (HPPIT)


Advanced borehole profiling and imaging solutions for accurate deep foundation assessment and construction quality verification.

ASTM D8232 (2018)

Overview

  • The Hole Profiling Pile Imaging Test is used to evaluate the profile, geometry, and alignment of drilled boreholes and spun pile holes prior to concrete placement.
  • YJACK Technology performs detailed borehole imaging and profiling assessments to verify pile verticality, alignment, and foundation dimensions while also evaluating soil sediment or slurry cake thickness at the pile base to support construction quality assurance.

Project Applications

Bridge
Infrastructure

Railway
Systems

High-Rise
Developments

Marine &
Offshore Structures

Large Diameter
Drilled Shafts

Borehole Foundation Construction

Engineering Capabilities

Advanced borehole imaging and profiling systems are used to evaluate pile geometry, alignment, and subsurface conditions throughout the drilled foundation element.

Detailed engineering interpretation supports verification of dimensional compliance, construction tolerances, and foundation readiness prior to concrete placement.

EXPLORE RELATED PROJECTS

MRGEO BRAND

Hole Profiling Pile Imaging Tester,
MODEN (HPPIT)

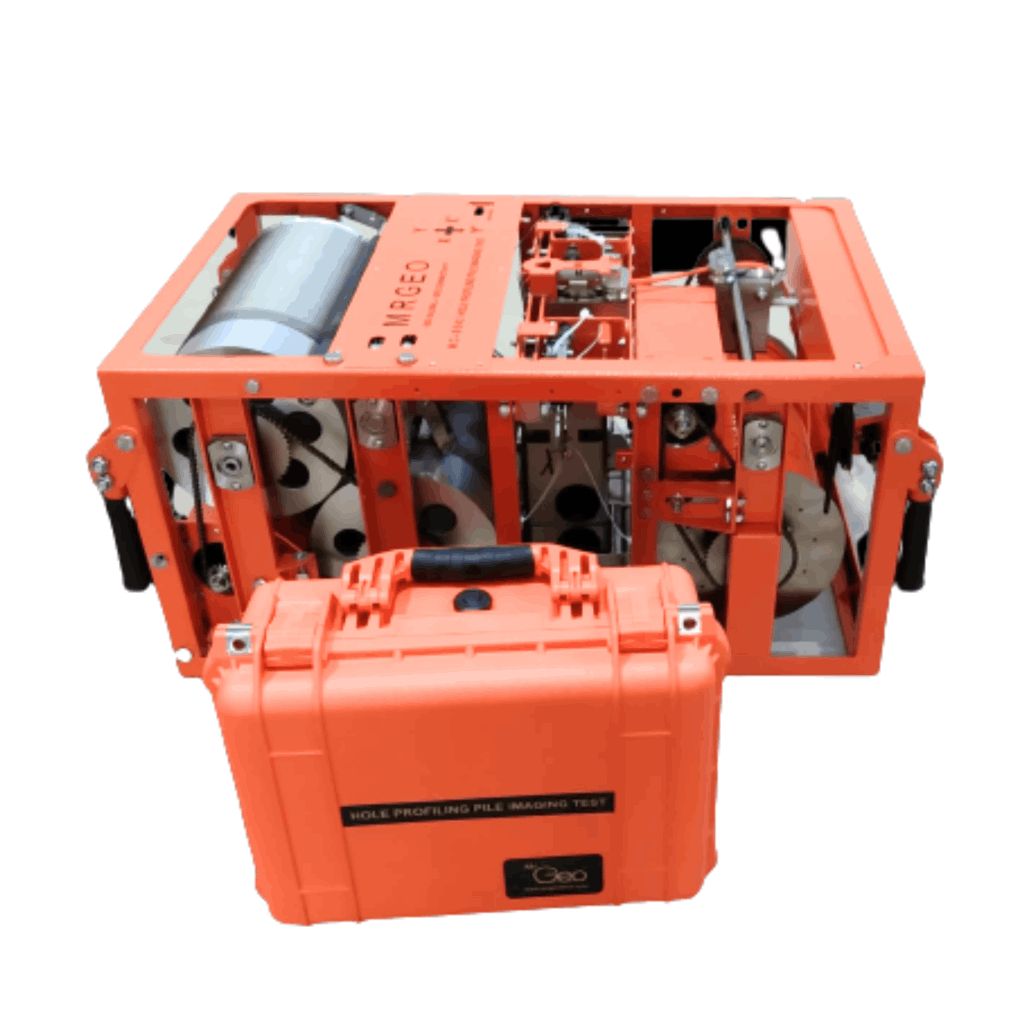

The Hole Profiling Pile Imaging Tester (HPPIT) is a state-of-the-art testing equipment to perform hole profile (or shape) of a drilled bore hole (or spun pile hole) by plotting the hole profiling to verify the pile verticality (or alignment) prior to concrete placement.

  • Borehole Imaging Analysis
  • Verticality Verification
  • Sediment Thickness Monitoring
  • Construction Quality Control
